Description

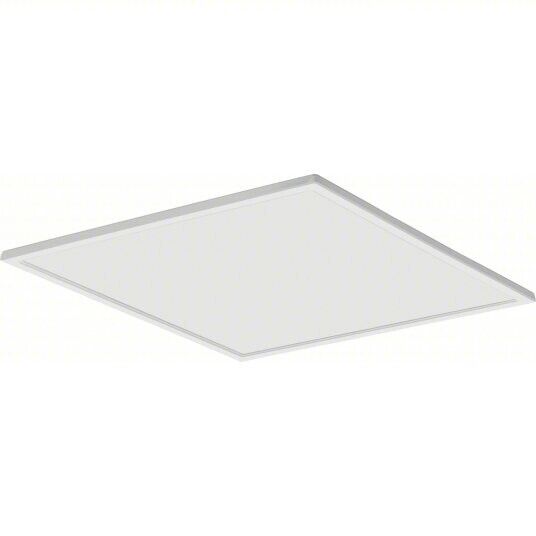

LITHONIA LIGHTING LED Flat Panel
These LED panels allow use with lighting control systems to operate sensors, dimmers, or other control features. They can be used with compatible open protocol systems, which support components from different manufacturers. For proprietary (closed) protocol systems, all components must be of the same brand or series. The panels' flat lens focuses light downward and reduces glare to provide a smooth, consistent lighting effect.
***PLEASE CONTACT US FOR ACCURATE SHIPPING RATES***
Product Details
DimmableYes
For Bulb TypeIntegrated LED
Voltage120/277V AC
LED Replacement For1 Lamp T8
Light TechnologyLED
Lighting CertificationDesignLights Consortium (DLC) 5.0
Lumens3,270 lm
Lumens per Watt107 lm/W
Color Rendering Index80
Dimming Method0-10V
Emergency Battery BackupNo
Lens ShapeFlat
Lens TypeSatin White
Max. Ambient Temp.77 °F
Max. Fixture Wattage31 W
Min. Ambient Temp.68 °F
Nominal Size2 ft x 2 ft
Overall Height2-1/4 in
Overall Length23-3/4 in
Overall Width23-3/4 in
Rated Life60,000 hr
Sensor TypeNo Sensor
StandardsCSA Certified; IC Rated; UL 1958
SeriesEPANL
Color Temperature4000K
Country of OriginMexico (subject to change)
